Usage

Build an image

  1. Launch the app. It checks tools, updates and the package list.

  2. Start tab. Download missing or outdated tools. App updates go to Downloads and can be opened after verification; on Linux this needs a Debian-based system.

    Start tab with installed tools and update status

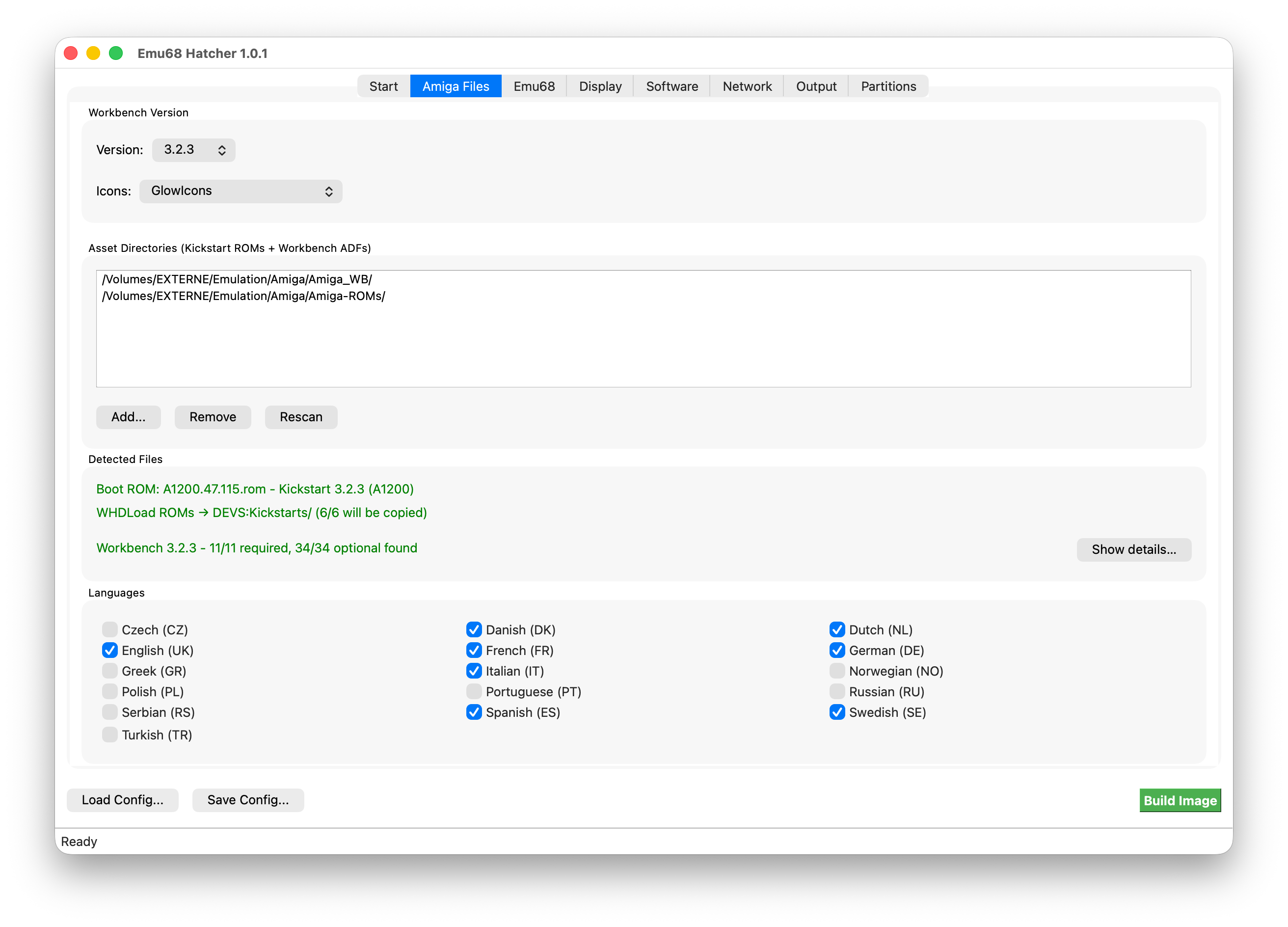

  3. Amiga Files tab. Add folders with a Kickstart ROM and Workbench ADFs, then pick version, icon set and languages. Files are matched by hash; Show details... lists what was found. AmigaOS 3.9 uses the CD .iso and a Kickstart 3.1 ROM instead. GlowIcons needs its matching ADF.

    Amiga Files tab with a detected Workbench 3.2.3 set

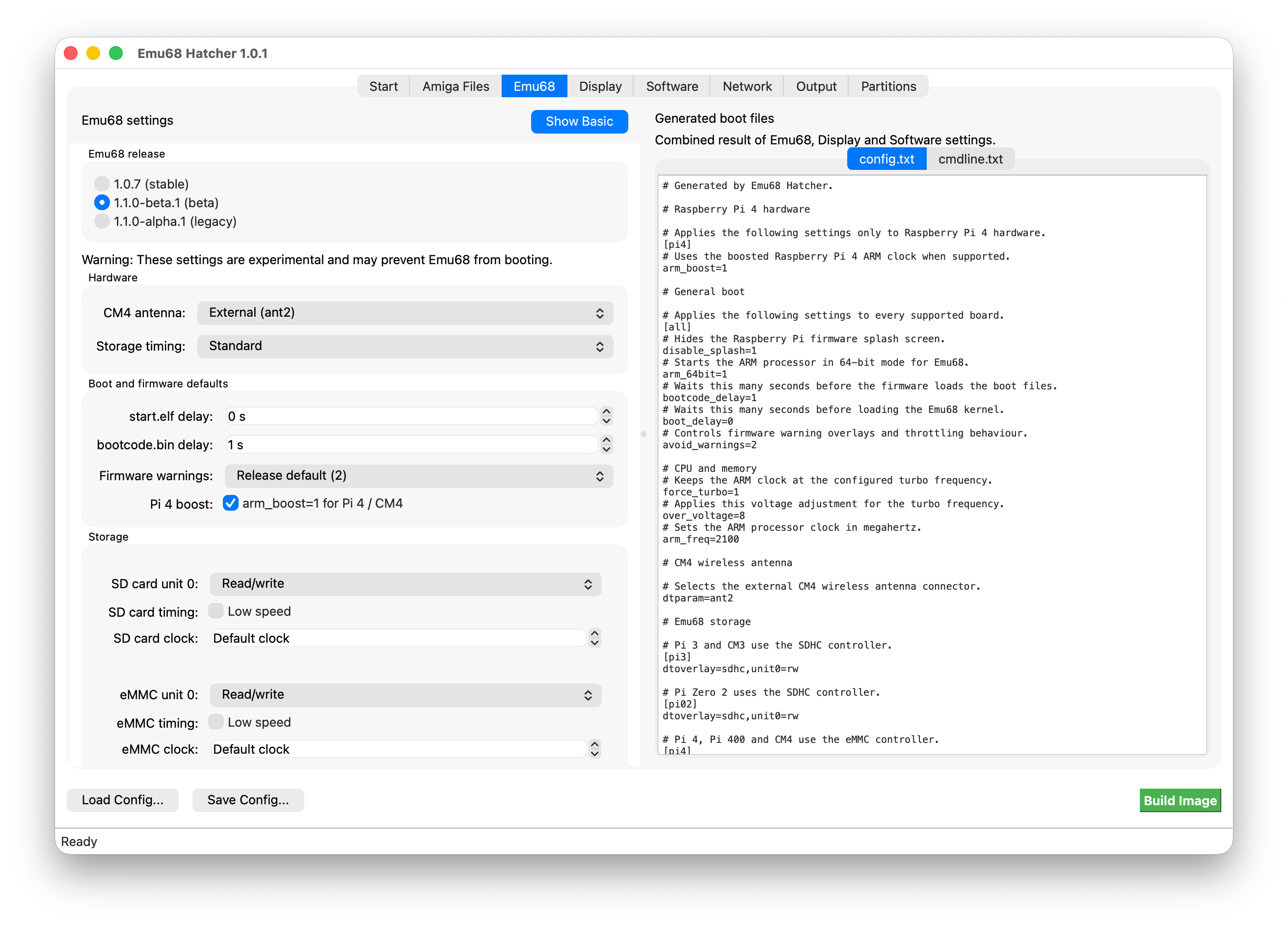

  4. Emu68 tab. Pick 1.0.7 stable or 1.1.0-beta.1 and set boot options. The right side previews config.txt and cmdline.txt; more settings are under Show Advanced.

    Emu68 tab with release selection and generated boot files

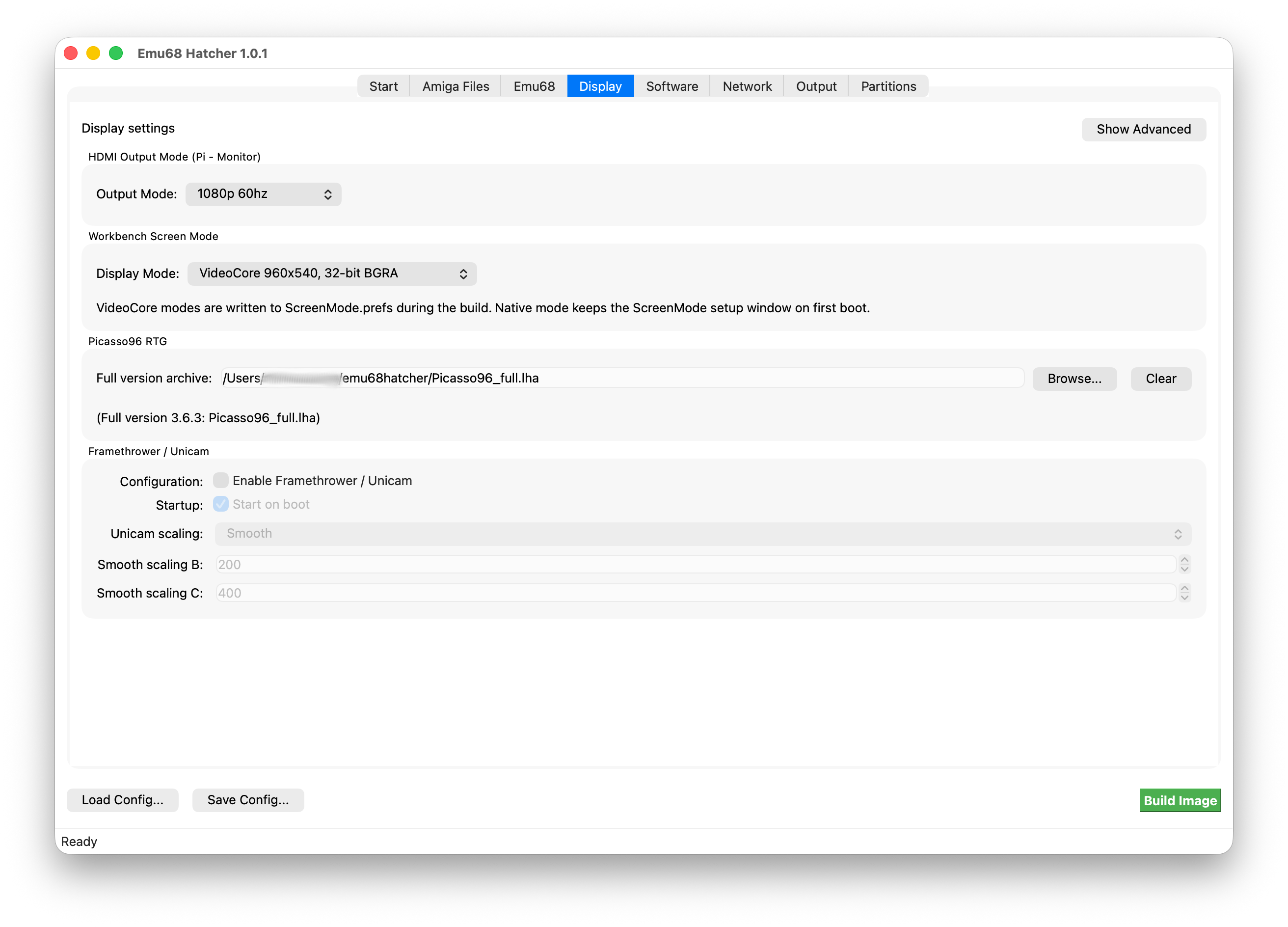

  5. Display tab. Set HDMI and Workbench modes, Picasso96, Framethrower and Unicam. Use Browse... for your own full Picasso96.lha.

    Display tab with HDMI, Workbench and Framethrower settings

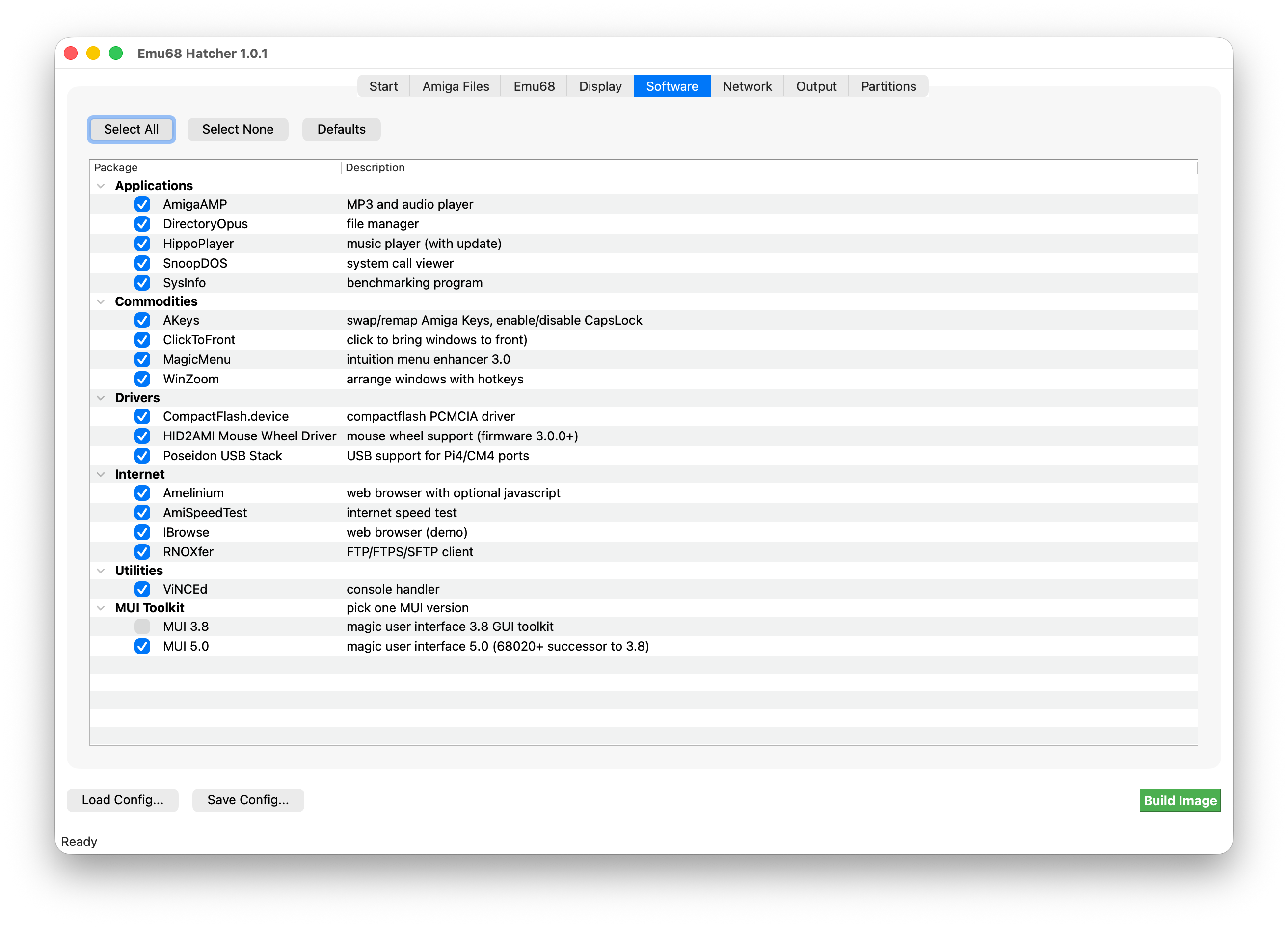

  6. Software tab. Select optional software and a MUI version. The list is filtered for the chosen Workbench and Emu68 versions. See Packages for all packages.

    Software tab with package groups

    The Fonts group has four optional packs: Workbench (Apparent, Dina, Terminus), MagicWB (XEN, XHelvetica, XCourier), Retro, and Scalable (Bitstream Vera, DejaVu, Roboto). Sizes and styles are included with each pack. Installing a pack does not change the active Workbench, system or screen font.

    TrueType packs also install ttf.library and register their fonts during the first boot. Font readmes and supplied licenses are copied to SYS:Emu68-Hatcher/Fonts/. Downloads come from the original sources, not from CaffeineOS. MagicWB is shareware; its license requires registration after the evaluation period and does not permit separate redistribution of its fonts.

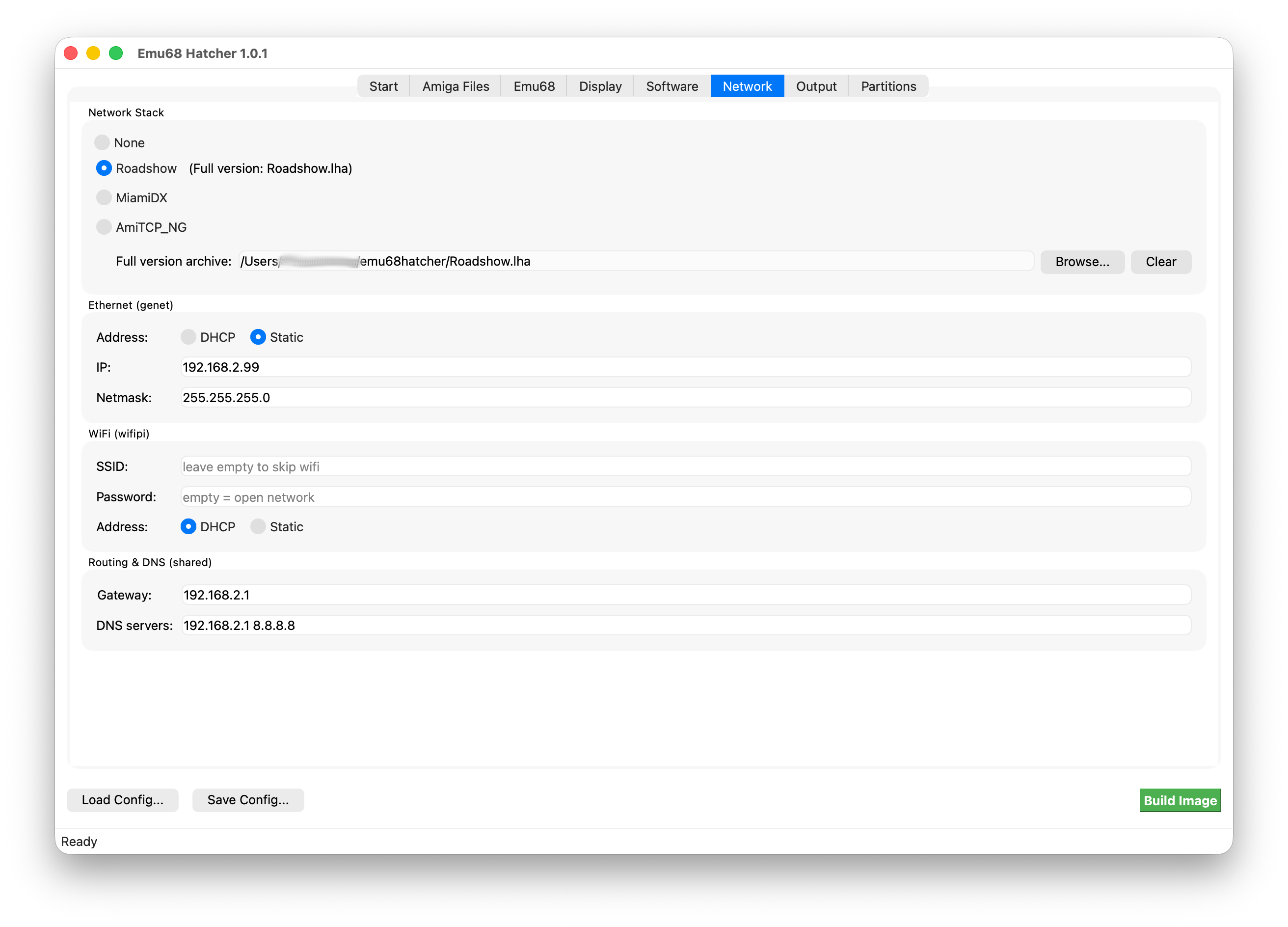

  7. Network tab. Choose Roadshow, MiamiDX or AmiTCP_NG and enter DHCP, static or wifi settings. Roadshow archives and MiamiDX registration files can be supplied here. Connections start from the Workbench tools.

    Network tab with Roadshow and static ethernet

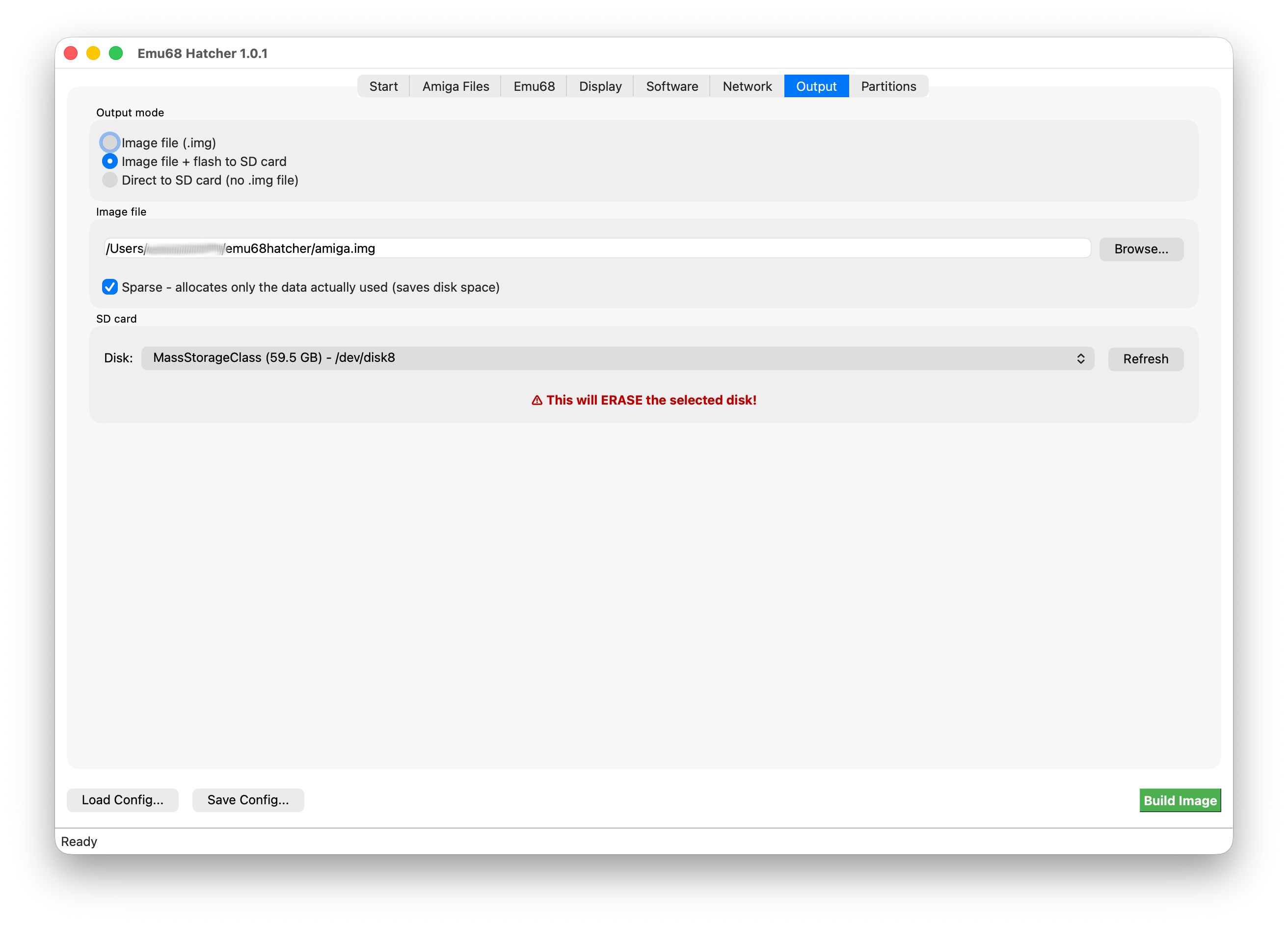

  8. Output tab. Pick how to deliver the build:

    • Image file - writes a sparse .img.
    • Image file + flash to SD card - keeps the image and then flashes it; fastest for large builds.
    • Direct to SD card - skips the image, but is slower with large partitions.

    Double-check the target!

    Picking the wrong disk will wipe it. Emu68 Hatcher will refuse to write to mounted root partitions (=your operating system) but has no problem with wiping anything else you have connected.

    Output tab set to build an image and flash it to SD

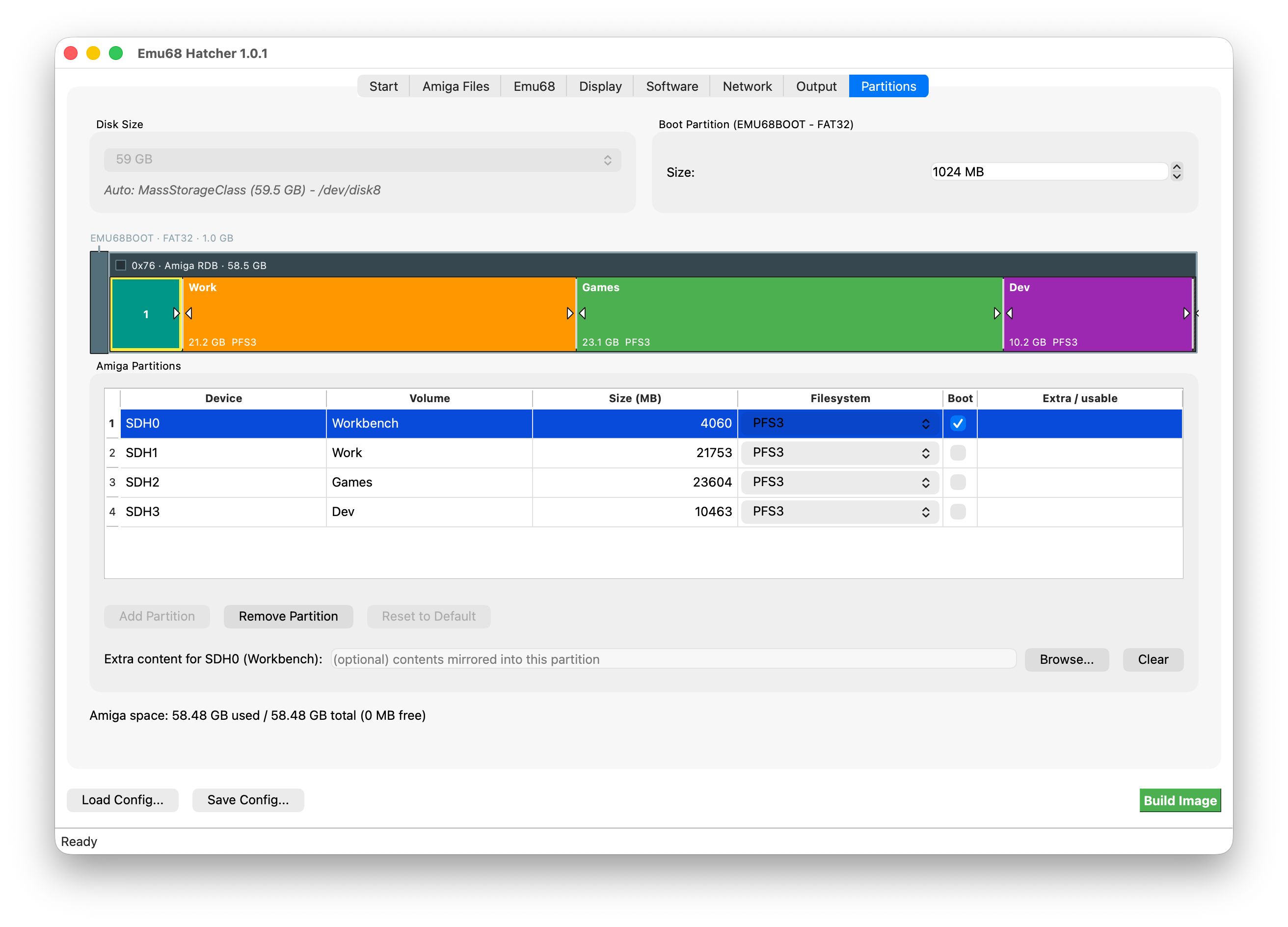

  9. Partitions tab. Add or resize partitions and optional extra-content folders. Default is a 64 GB image with 1 GB EMU68BOOT, about 1/15 for Workbench and Work using the rest. FAT32 and RDB use two MBR entries; the listed Amiga partitions are inside the RDB.

    Extra content is copied last and can overwrite generated files.

    Partitions tab with four Amiga partitions

  10. Click "Build Image". The first build downloads packages; later builds use the cache. The dialog and buildlog.txt contain the build log.

Flashing asks for admin access. On macOS, hst-imager also needs Full Disk Access; see Installation.

Save / load configuration

Use Save Config... and Load Config... for JSON configs. wifi credentials are not saved.
